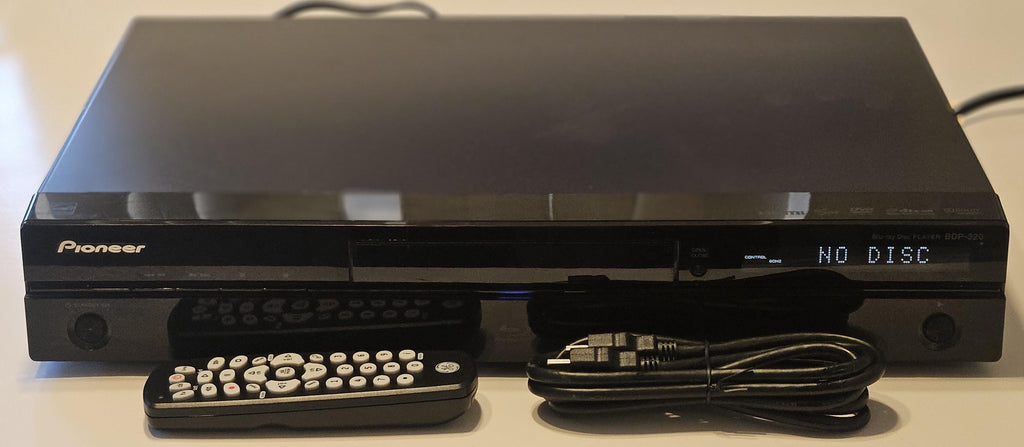

Pioneer BDP-320 Blu-Ray Disc Player

The Pioneer BDP-320 is a performance-oriented Blu-ray player released in 2009. It was positioned as a high-quality alternative to entry-level players, focusing heavily on video and audio fidelity rather than modern streaming "smart" features.

It is particularly notable for its 7.1-channel analog outputs, making it a "holy grail" for enthusiasts with older high-end receivers that lack HDMI ports but still want to hear lossless surround sound.

1. Audio Performance & Connectivity

• 7.1-Channel Analog Outputs: This is its standout feature. It has eight RCA jacks on the back to send decoded high-definition audio directly to an older analog receiver.



• High-End DACs: It uses four Burr-Brown Audio DACs (192kHz/24-bit) for superior digital-to-analog conversion.



• PQLS (Precision Quartz Lock System): When paired with a compatible Pioneer AV receiver via HDMI, this system eliminates "jitter" during 2-channel CD playback for a cleaner sound.



• Lossless Decoding: Internally decodes Dolby TrueHD and DTS-HD Master Audio, as well as Dolby Digital Plus and DTS-HD High Resolution.



2. Video & Picture Quality

• 48-bit Deep Color: It supports a much wider color gamut than standard players, reducing "banding" in color gradients (like a sunset).



• True 24fps Output: Delivers movies at the original theatrical frame rate (1080p/24p) for a cinematic, film-like motion.



• Picture Control Suite: Offers 13 different video adjustments, including specialized Noise Reduction (Triple HD NR) to clean up grainy images or blocky artifacts from older DVDs.



• DVD Upscaling: Features high-quality scaling to make standard definition DVDs look significantly sharper on 1080p displays.



3. Physical & Technical Specs

• Disc Formats: Blu-ray (BD-ROM, BD-R/RE), DVD (DVD-Video, DVD-R/RW), and CD (CD-DA, CD-R/RW).



• Media Support: Supports AVCHD (high-def camcorder footage) and MP3/WMA/JPEG files.



• BD-Live (Profile 2.0): Includes an Ethernet port and 1GB of internal memory to download extra disc content (trailers, etc.).



• Expandable Storage: The USB port on the back supports external hard drives (up to 2TB) specifically for storing BD-Live data.



• Dimensions: 16.6" W x 2.9" H x 11" D.



• Weight: 7.7 lbs (significantly heavier and sturdier than modern "slim-line" players).

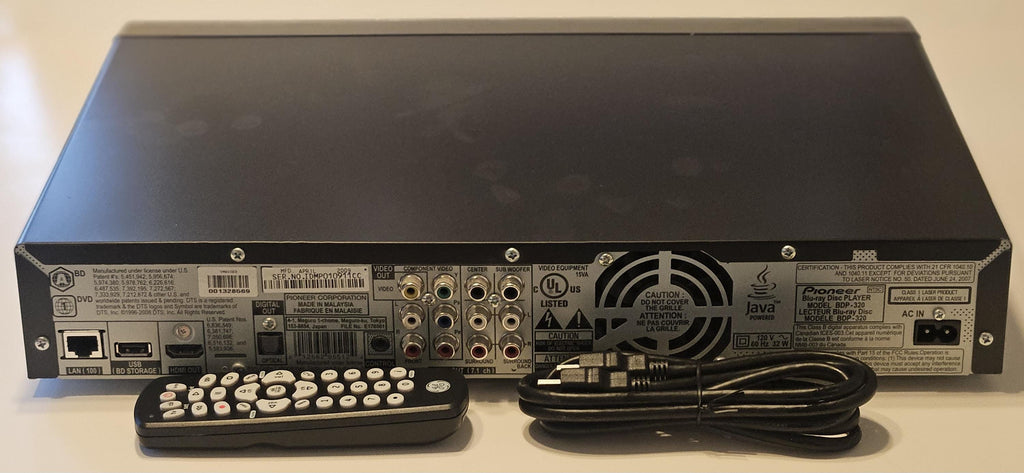

4. Key Back Panel Terminals

• HDMI 1.3a Output (1)

• Component Video Output (1 set)



• Composite Video Output (1)

• 7.1-Channel Discrete Analog Output (1 set)



• Optical Digital Audio Output (1)

• Ethernet Port (1)

• USB Port (1)

Important for Modern Users

• No Wi-Fi: It is a strictly wired (Ethernet) machine.



• No Streaming Apps: This player does not have Netflix, YouTube, or Hulu built-in. Its Internet connection is used only for BD-Live features and firmware updates.



• Slow Load Times: As a 2009-era player, it is known for being "sluggish" compared to modern Blu-ray players, sometimes taking over a minute to load a complex disc.
