JVC HR-S3900U Super VHS S-VHS VCR

The JVC HR-S3900U is a high-resolution Super VHS (S-VHS) VCR that was popular in the early 2000s for its ability to deliver 400 lines of horizontal resolution, significantly sharper than the 240 lines provided by standard VHS.

It is particularly known for its S-VHS ET (Expansion Technology), which allows you to record high-resolution S-VHS signals onto standard, inexpensive VHS tapes.

1. Video & Audio Performance

• DA-4 Head System: Features dual azimuth 4-video heads and 2 Hi-Fi audio heads for superior picture and sound.



• 19-Micron Heads: Specifically designed to provide a cleaner, sharper picture when recording or playing in EP (Extended Play) mode.



• Hi-Fi Stereo: Includes an MTS Decoder for high-fidelity stereo playback and recording, making it "Home Theater Ready" for Dolby Pro Logic receivers.



• Active Video Calibration: Automatically checks the condition of the heads and the tape to optimize recording and playback quality.



2. Convenience & Control

• VCR Plus+ with "Cable Eye": Includes a cable box controller that allows the VCR to automatically change channels on your cable or satellite box for timed recordings.



• Shuttle Plus: Features a jog/shuttle control on the remote and an Advanced Jog dial on the front panel for precise frame-by-frame searching.



• Plug & Play: Automatically sets the clock and finds active channels as soon as you plug it in and connect an antenna or cable.



• Picture Control: Allows you to choose between Auto, Edit, Soft, or Sharp modes to match the condition of the tape you are watching.



3. Connectivity (Inputs & Outputs)

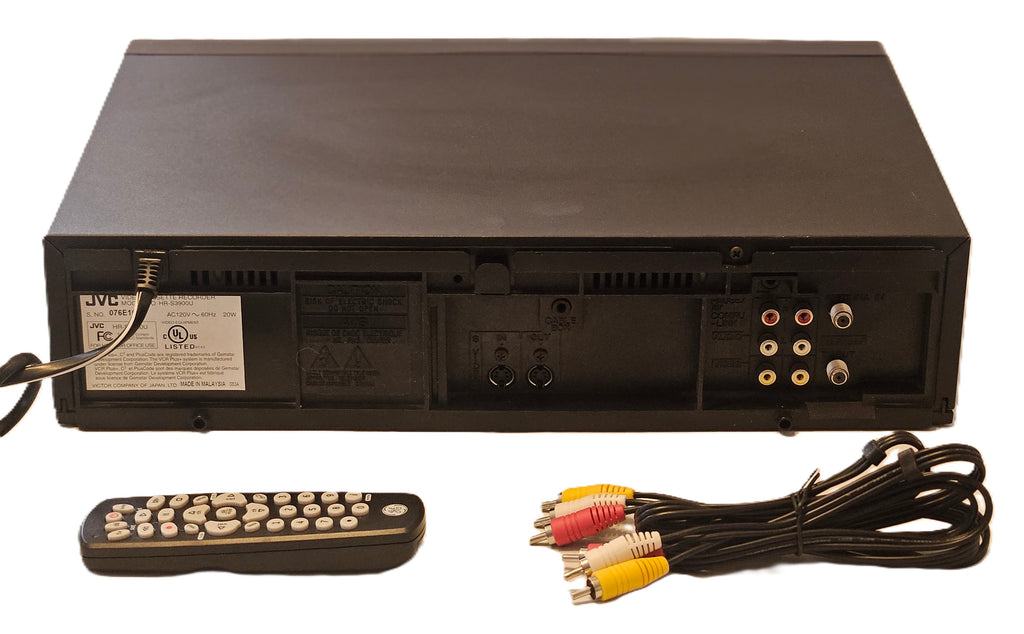

• S-Video In/Out: Located on the rear panel; essential for maintaining the high-resolution signal of S-VHS tapes.



• Front A/V Inputs: Features gold-plated composite and S-Video inputs behind a front panel for easy connection of camcorders or game consoles.



• AV Compu Link: Provides one-touch operation when used with other compatible JVC components.



Technical Specifications

Recommended S-VHS VCRs

If you are looking for an S-VHS machine for a digitization project, the JVC HR-S3900U is a highly-rated "prosumer" choice for its stability and S-video output.
