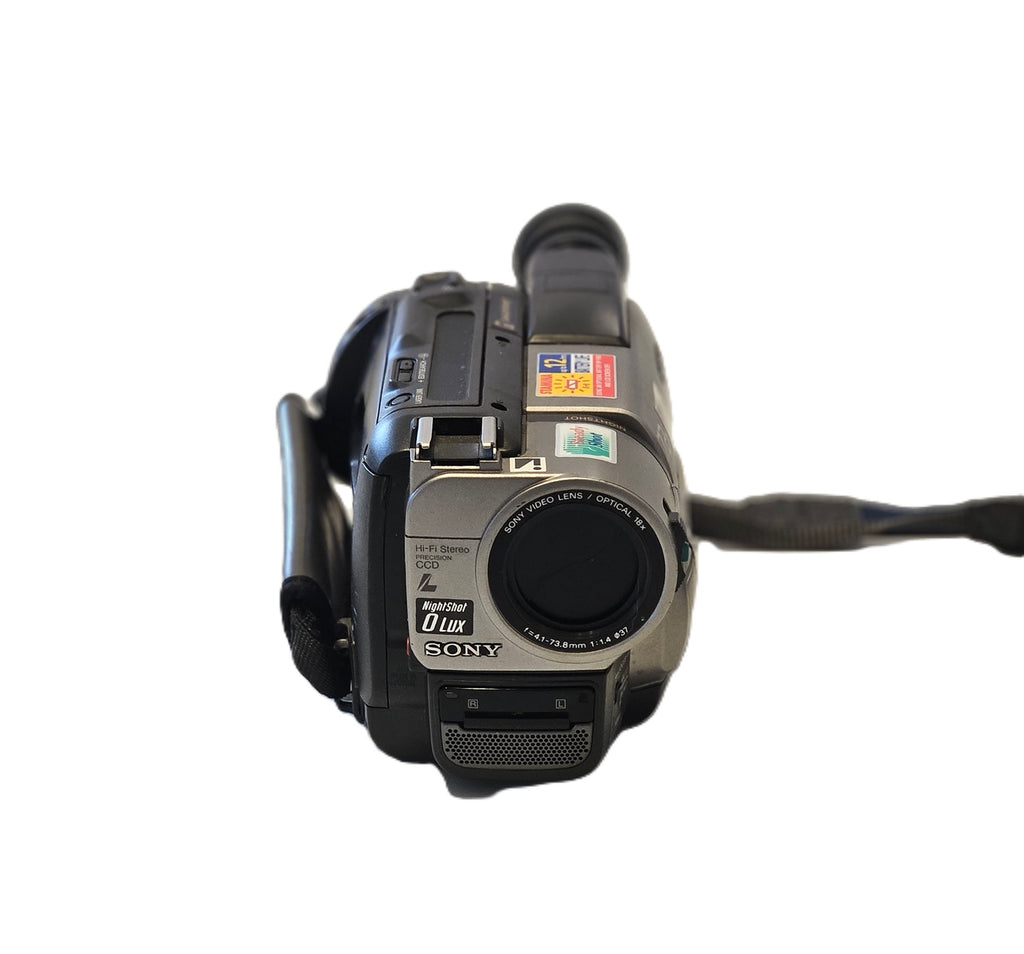

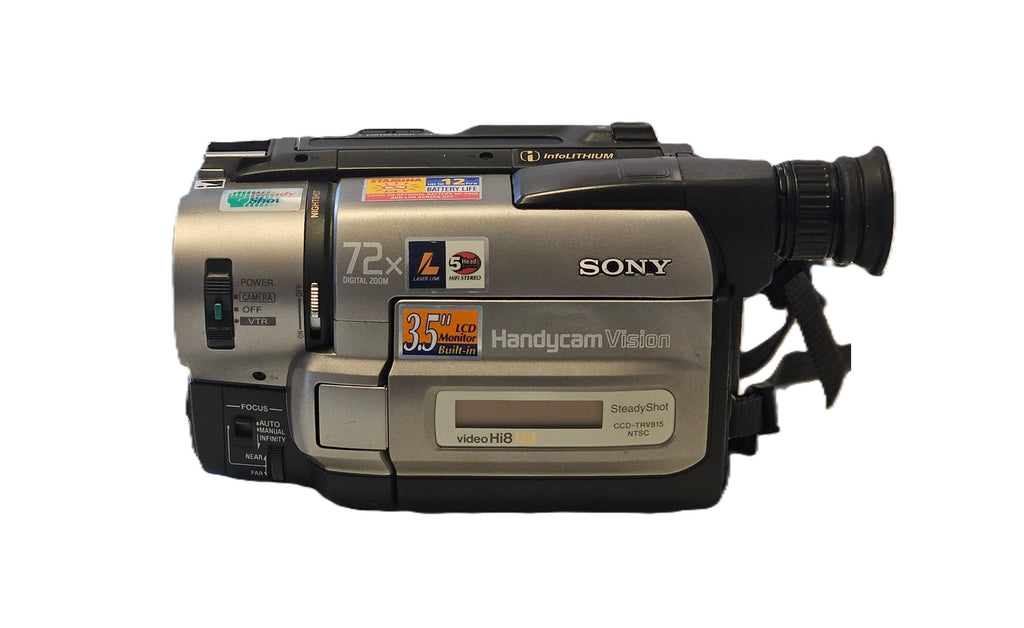

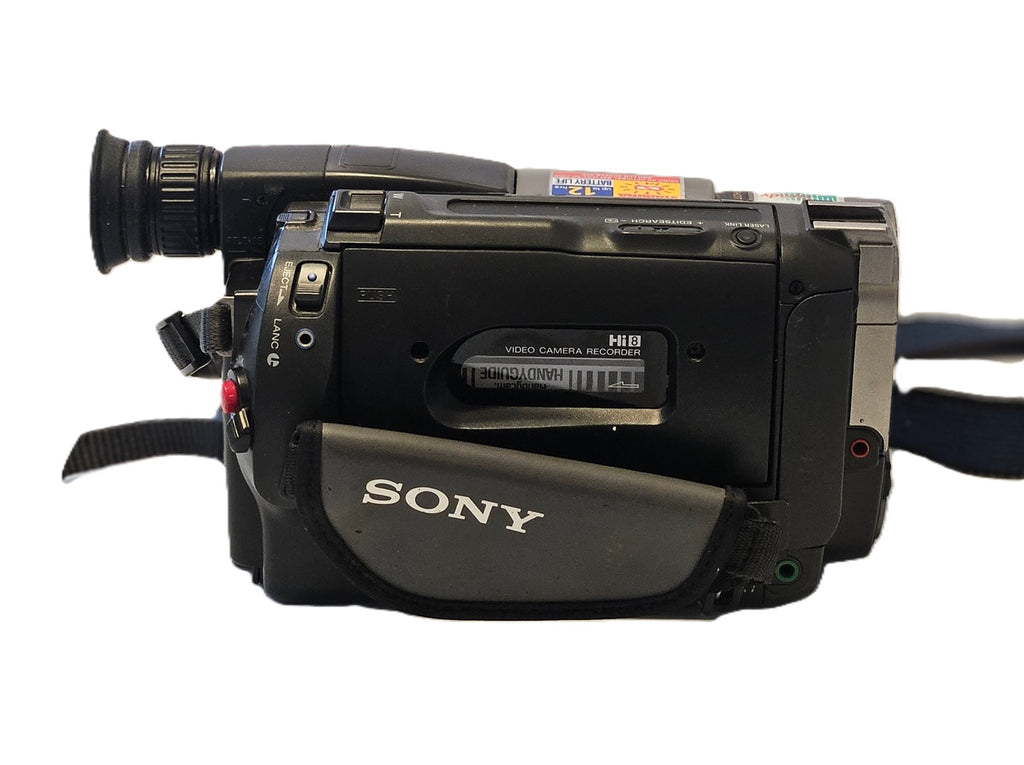

Sony DCR-TRV815 Hi8 8mm Camcorder Video Handycam

The Sony CCD-TRV815 is a top-tier XR Hi8 Handycam camcorder released in 1998. It is highly regarded by archiving professionals because it represents the absolute peak of Sony's analog 8mm tape technology before they shifted focus to Digital8 and MiniDV.

For your media transfer service, this camcorder is an exceptional "playback deck" for digitizing customer tapes, as it includes premium features designed to extract the highest possible audio and video quality from Hi8 and standard Video8 cassettes.

1. Video & Audio Performance

• Hi8 XR (Extended Resolution): This feature boosts horizontal resolution up to 440 lines when playing back or recording on compatible Hi8 tapes. This provides a 10% sharper picture than standard Hi8 and nearly doubles the clarity of standard VHS.

• Hi-Fi Stereo Sound: Unlike basic camcorders that only record monaural sound, the TRV815 records high-fidelity AFM stereo audio, ensuring you capture full left and right channel separation from home movies.

• TBC (Time Base Corrector): Built-in digital circuit that stabilizes the video signal, eliminating "jitter," shaky lines, and crooked edges caused by old or stretched tapes. This ensures your capture cards get a solid signal lock.

• DNR (Digital Noise Reduction): Cleans up color "noise" and graininess in low-light footage, resulting in a significantly cleaner digital transfer.

2. Optics & Display

• Lens: High-quality 30x Optical Zoom (120x Digital Zoom) with a bright f/1.4 maximum aperture.

• SteadyShot: Sony's optical image stabilization system to counteract shaky hand movements.

• LaserLink Wireless Transmitter: A unique legacy feature that allowed the camcorder to transmit video wirelessly via infrared to an optional receiver plugged into a TV.

• LCD Screen: Generous 3.5-inch SwivelScreen color LCD for easy monitoring, alongside a black-and-white viewfinder to save battery power.

3. Essential Connectivity for Digitization

The port layout on the TRV815 makes it an ideal desktop transfer deck:

• S-Video Output: Crucial for your workflow. S-Video separates the luminance (Y) and chrominance (C) signals, eliminating dot-crawl and color bleeding during digital capture. Always use this instead of the standard yellow RCA port.

• Stereo RCA Audio Outputs: Left (White) and Right (Red) analog audio ports.

• Control-L (LANC) Port: A standard 2.5mm remote port that allows you to connect the camcorder to an external editing console or automation rig for precise playback control.

Technical Specifications
