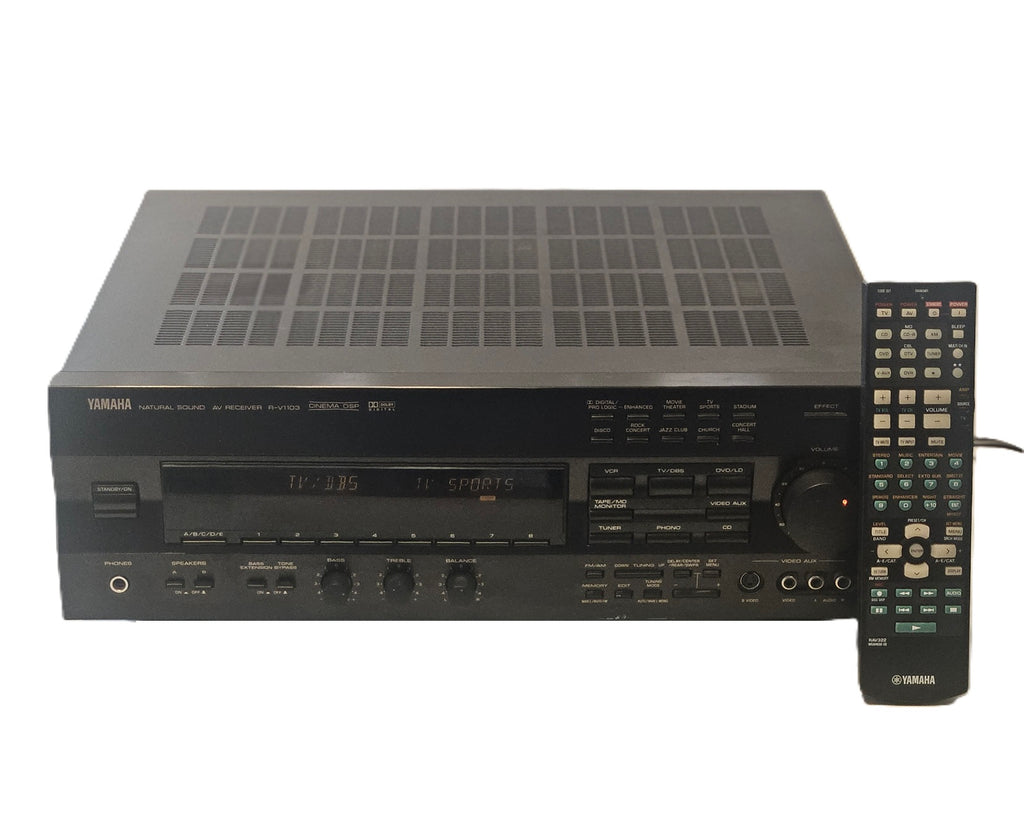

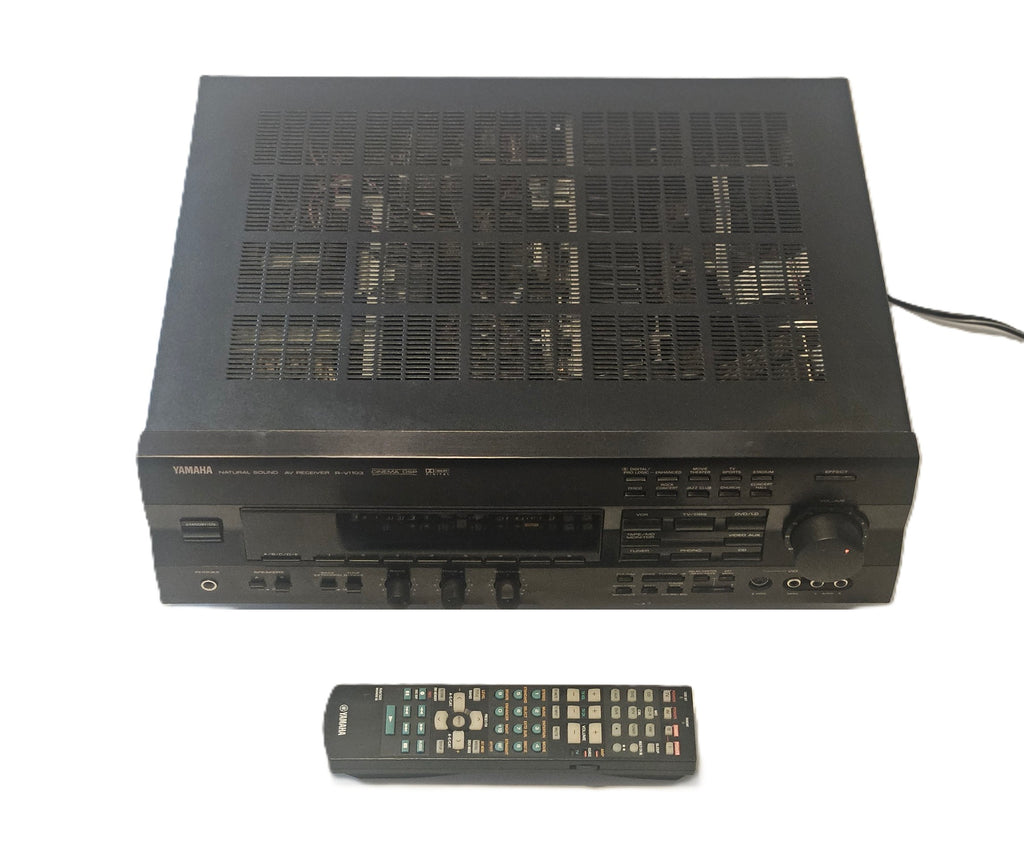

Yamaha RV-1103 5.1 Channel 500 Watt Home Theater Receiver

The Yamaha R-V1103 is a classic Natural Sound AV receiver from the late 1990s. It was a flagship-tier model for Yamaha at the time, predating the modern "RX-V" naming convention while offering much of the same high-current power and legendary DSP processing.

1. Audio Power & Performance

• Output Power: It delivers 100 Watts per channel into $8\Omega$ (all 5 channels driven) with a very low 0.015% THD (Total Harmonic Distortion). In stereo mode, it can drive up to 125 Watts per channel.

• Discrete Amplification: Unlike budget receivers that used integrated "chip amps," the R-V1103 uses discrete transistors for every channel to ensure high dynamic headroom.

• Low Impedance Drive: It is stable down to 2 ohms, meaning it can easily handle difficult-to-drive, high-end speakers.

• Damping Factor: 80 (8Oms, 20 Hz – 20 kHz), ensuring tight control over your woofer's movement for accurate bass.

2. Surround Sound & DSP

• Dolby Digital (AC-3) Ready: This was one of the first receivers to feature discrete 5.1 channel inputs specifically for external Dolby Digital decoders.

• Yamaha Cinema DSP: Features Yamaha's proprietary processing that simulates the acoustics of actual concert halls and cinemas.

• Pro Logic Decoding: Includes advanced Dolby Pro Logic for matrixed surround sound from stereo sources like your Quasar or Panasonic VCRs.

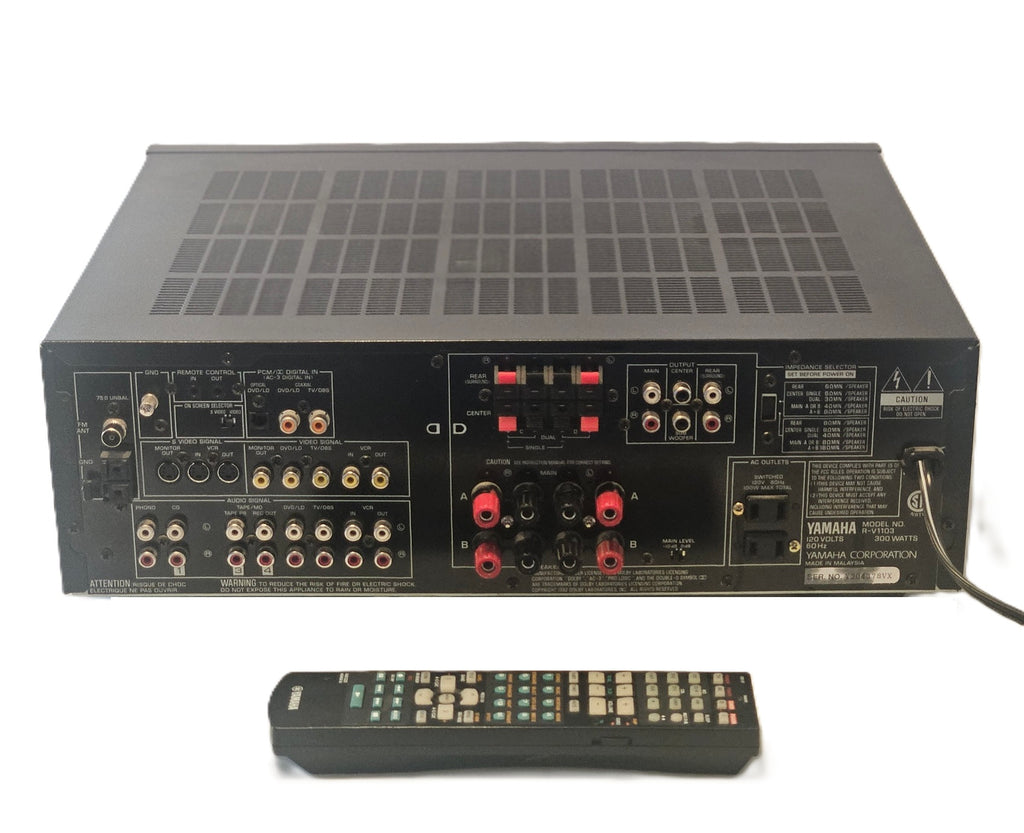

3. Connectivity & Build

• Inputs: 5 Video inputs (including S-Video) and 4 Audio inputs (including Phono).

• Pre-Outs: Full 5.1 channel pre-amplifier outputs, allowing you to use it as a processor with an external power amp like the Outlaw Model 7125.

• Phono Stage: A dedicated Moving Magnet (MM) phono input for your turntable.

• S-Video Switching: High-quality S-Video inputs and outputs to keep your video signal clean for your media transfer service.

Technical Specifications
